MMSC06A2544硅電容
General Description
? Target applications are decoupling and filtering of active devices when miniaturization is required. This product is a single 220pF capacitor in 0.44 x 0.44mm package size.
? MMSC06A capacitors have the bottom electrode in Ti/Ni/Ag (0.9μm) and top electrode in aluminum.
Key Applications
? Supply decoupling/filtering of active device
? Wide application and range, such as Lidars, Radars as well as Mems,sensors, TPMS…
? High reliability applications
? High volumetric efficiency
? Devices with battery operations
Structure
? Electrode topside (anode) : AL=25000±500A
backside(cathode) : Ti/Ni/Ag=9000±200A
? Dielectric Constant(SiNx) : 7.5
Size
? Chip size (After dicing) : 440±20μm*440±20μm
? Thickness : 250±15μm

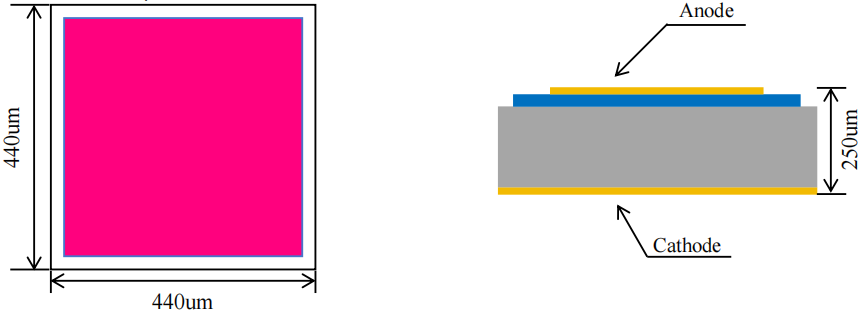

? Pattern drawing : per fig.1

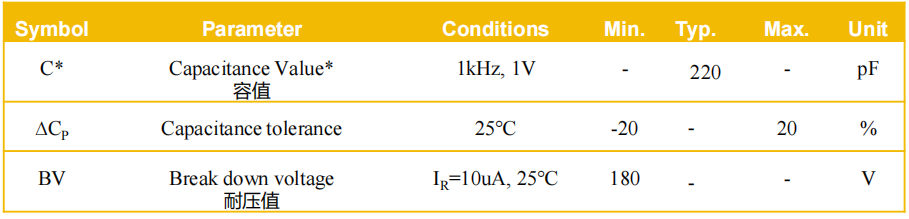

Electrical Characteristics
* Capacitance value is sampling measurement
* The whole topside metal can be wired.
