MSC01S2175硅電容
Scope
? The specification applies to single layer Capacitor. Type : MSC01S2175
? Single Layer Capacitor MSC01S2175
Structure
? Electrode topside (anode) : Au=5000±500A
backside(cathode) : Au=1000±200A
? Dielectric Constant(SiNx) : 7.5
Size
? Chip size (After dicing) : 750±20μm*750±20μm
? Thickness : 210±15μm

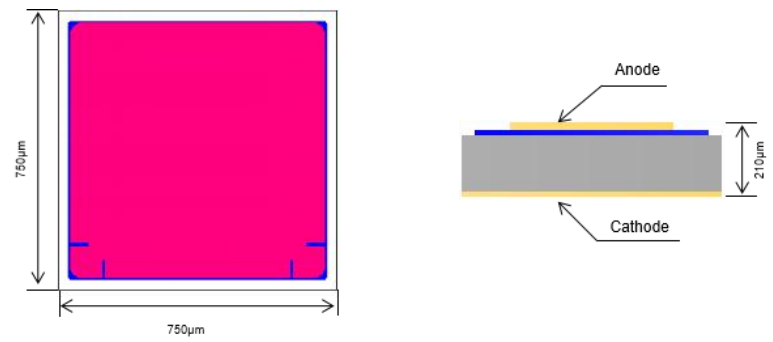

? Pattern drawing : per fig.1

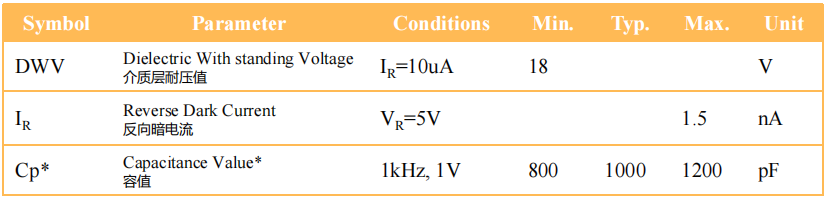

Electrical Characteristics
* Capacitance value is sampling measurement
* The whole topside metal can be wired.
